The M0CVO Antennas FD-10G

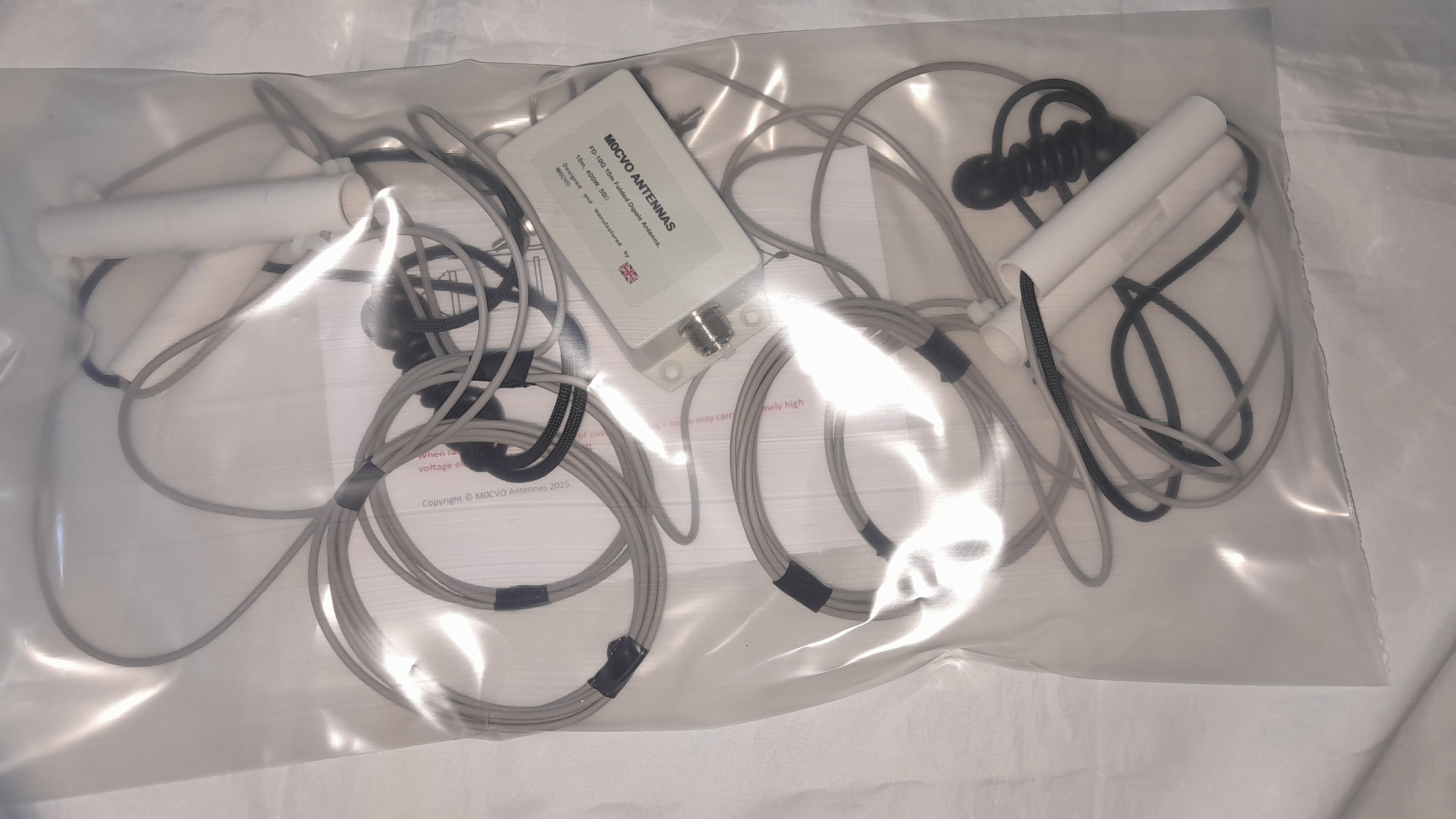

The M0CVO Antennas FD-10G. This is a 10m band only, 1/2 wave folded dipole, fed with 50 ohm coaxial cable. It is designed to be mounted horizontally, inverted vee or sloper.
Big performance from a small footprint - only 5.0m in length.
VSWR is less than 2 from 26.9MHz to 30MHz so covers both the 10m and 11m bands.
As you can see, this is truly an antenna with a small footprint and high performance for the modern amateur.
Specifications
- Frequency: 26.9 - 30MHz
- Length: 5.0m
- Power: 400W
- Connector: SO-239
- Gain: 5.15dBi
- Impedance: 50 Ohm
